main feature
1. Adopt PLC control, program setting, automatic operation of unattended care, monitoring of feeding, initial filtration, washing, fine filtration and unloading.
2. Frequency control, stable starting, adjustable separation factor.
3. Energy consumption braking, non-contact braking method, no friction dust pollution.
4. Fully enclosed structure, the seal is made of silicone rubber or fluoro rubber, and the inside of the centrifuge is protected by nitrogen, which can meet the requirements of closed explosion protection.
5. Reasonable structural design, online cleaning system (spraying system), to ensure cleanliness requirements, in line with GMP regulations.
6. The automatic action components are pneumatically cleaned.
7. RF admittance control.
8. Optional gas-assisted scraper, no residual filter cake in the drum after unloading.
9. No basic installation, simple structure, beautiful appearance and convenient cleaning.
10. The design of vibration damping and vibration isolation system is scientific and reasonable. It adopts balance block and imported high-precision liquid damper type vibration isolator. The vibration of the equipment is absorbed by the vibration isolation system, and there is no vibration interference to the basic ground and surrounding environment.
11. The equipment basic balance board can be used as an operation platform, which is more convenient for operation and maintenance.
12. Safety protection: speed detection, over vibration protection, open cover protection, motor overload and overheat protection, scraper rotation, double control of lifting machinery and electrical, interlocking of scraper and drum.
Standard manufacturing
1. Structure: The shell is equipped with a flip cover and a branch tube, a washing tube, a sight glass, an exhaust port, and an illumination hole; the sealed structure, the drum and the outer casing, the flip cover and the like are made of stainless steel material (SUS304). The base is made of casting and the surface is lined with stainless steel. The drum, the inner and outer surfaces of the outer casing, and the surface of the exposed parts of the machine are polished.
2. All fasteners are stainless steel.
3. Adopt PLC control.
4. Electromechanical material control.
5. Transmission and braking: ordinary motor (or explosion-proof motor) + inverter + energy brake.
6. Pneumatic system.
7. No basic form (balance block + imported high precision liquid damper type vibration isolator).
Optional configuration
Clean the spray system.
Hydraulic action system.
Nitrogen protection system.
Gas assisted scraper.
RF admittance range control.
Touch screen control.
According to the anti-generic requirements of the materials separated by the user, the corresponding stainless steel materials (SUS304, 316, 316L, 321, titanium, etc.) are used.

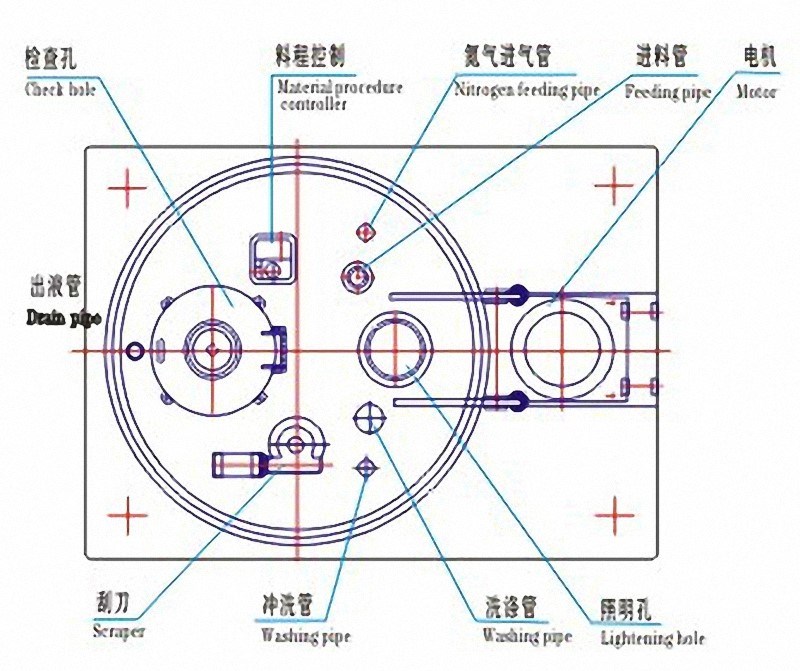

Product structure diagram

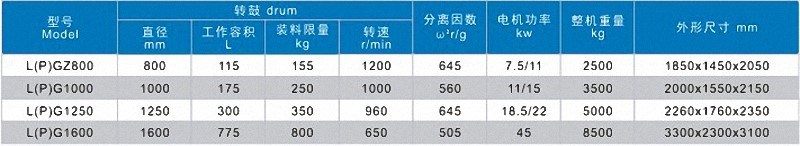

The main technical parameters
